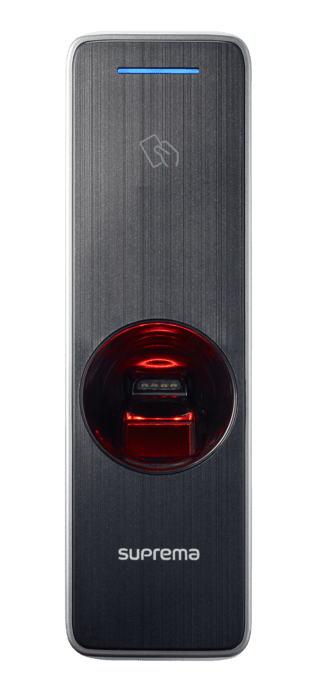

BioEntry W2 Front
Device LED status
This is the Device LED status indicator. it will show if the network is connected, DHCP failed, no connection can be made, Auth success, auth fail and more
Green solid: Authentication success
• Red solid: Authentication failure
• Blue/Sky blue blinking: Normal operation
• Blue/Green blinking: The IP address has not been received properly when using
DHCP
• Blue/Green blinking: When initializing network settings
• Green blinking: Waiting for an input
• Green/White blinking: Connecting with the Airfob Pass (BLE) application of Suprema
Card
Card RFID reader, all devices can be used as a card reader. they either use standard Mifare cards or DesFire ev1/ev2/ev3.
some of our readers can also read the HID card type with the A reader version BEW2(device) - OAPB(type)
Fingerprint Sensor
This is the fingerprint Sensor, these can have multiple features that aid security such as:
- live fingerprint detection
- Fake finger detection
- a motion sensor to detect when a finger is about to be presented.
- Secure mode settings for stronger matching across reference points
